TPU Monofilament Guide: Specifications, Processing Tips & Benefits

Modern high-performance textile manufacturing increasingly demands raw materials that seamlessly unite exceptional tensile strength, structural flexibility, and long-lasting wear resistance to meet the rising global standards for technical fabrics and athletic gear. TPU monofilament is cutting-edge solutions for footwear, technical fabrics, webbing, and outdoor equipment.

As a premier monofilament yarn manufacturer established in 1983, Sinrylion brings over 40 years of textile engineering expertise to international buyers. This technical guide outlines core physical properties, application specifications, processing guidelines, and sourcing options for your production line.

TPU Monofilament Fundamentals

What Is Thermoplastic Polyurethane Monofilament?

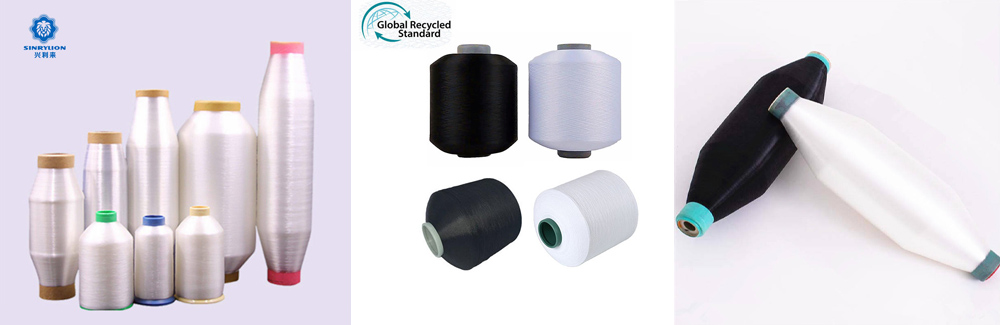

TPU monofilament is a solid single-strand synthetic yarn extruded from thermoplastic polyurethane resin. Unlike multi-filament strands, monofilaments feature uniform cross-sections with reliable structural behavior and precise diameter control.

The molecular structure combines hard and soft polymer blocks:

• Hard Segments: Provide structural rigidity, high tensile strength, and controlled melting points.

• Soft Segments: Deliver rubber-like elasticity, flex endurance, and soft hand-feel.

Core Product Series & Technical Comparison

To meet diverse industrial requirements, Sinrylion produces two primary technical series: TPU Covered High Strength Monofilament and TPU Monofilament.

Key Advantages in Textile Manufacturing

1. Extreme Abrasion and Flex Resistance: Withstands continuous mechanical stress without fraying or breaking.

2. Eco-Friendly Thermal Fusion: Low-melting TPU layers act as self-bonding agents (160°C – 250°C), replacing solvent glues and chemical adhesives.

3. High Transparency and Vibrant Pigments: Pure TPU monofilaments achieve high optical clarity, while covered yarns accept matte, crystal, or vibrant custom dyes.

4. High Tensile Strength: TPU coated cores provide load-bearing capacity for heavy-duty outdoor gear and footwear uppers.

💡 Frequently Asked Questions

Q: What is the difference between TPU covered monofilament and standard TPU monofilament?

A: TPU covered high strength monofilament  features a high-strength core wrapped in TPU, offering super fold resistance and structural load-bearing capacity for bags, ribbons, and outdoor gear. Standard TPU monofilament is a solid elastomeric strand providing high transparency, rubber-like elasticity, and soft tactile feel for flyknit, warp-knitted uppers, and medical products.

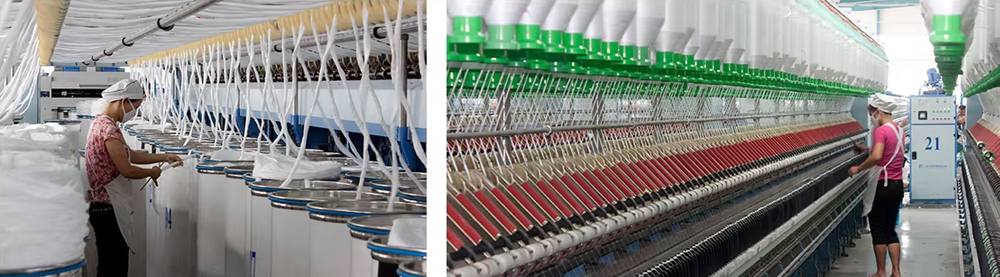

TPU Monofilament Processing Technologies and Tips

Processing elastomeric and coated monofilaments on high-speed looms requires exact tension management and thermal zone regulation.

Thermal Setting and Melt-Bonding Guidelines

Because TPU features customizable melting thresholds, heating parameters must match yarn grade specifications:

• Pre-heating Zone: Hold between 70°C and 90°C to ease internal stress prior to weaving.

• Thermal Bonding Zone: Calibrate hot-air plates to 160°C – 220°C for standard TPU monofilaments, or up to 250°C for high-temperature covered yarns.

• Cooling Zone: Cool rapidly below 50°C with chilled rollers to lock structural dimensions.

Pro Tip: Measure heating bed temperatures with a calibrated infrared pyrometer to prevent localized hot spots that cause uneven strand fusion.

Tension and Friction Management

• Active Yarn Feeders: Use motor-driven active unwinding units rather than passive friction brakes to prevent pre-stretching.

• Warp Tension: Maintain warp tension strictly within 0.15 to 0.25 cN/dtex.

• Ceramic Guides: Install ceramic or polished stainless-steel yarn guides to reduce surface friction.

• Humidity Control: Keep workshop relative humidity between 60% and 70% to eliminate static accumulation.

Quality Inspection Protocols

To maintain batch-to-batch consistency, Sinrylion subjects all yarn shipments to laboratory testing:

• Tensile Strength & Elongation: Tested via constant-rate-of-extension equipment according to ISO 2062.

• Hot Air Shrinkage: Strands exposed to 100°C air for 15 minutes must maintain dimensional shrinkage under 3.0%.

• Hardness Verification: Checked with Shore A durometers per ISO 868 standards.

💡 Frequently Asked Questions

Q: What processing parameters should be used for TPU monofilament during weaving and heat-setting?

A: Thermal bonding temperatures should be set between 160°C and 220°C (up to 250°C for high-strength grades). Unwinding warp tension must be kept low (0.15 to 0.25 cN/dtex) using active motor feeders to prevent yarn stretch deformation before heat pressing.

How to Choose the Right TPU Monofilament

Matching yarn specifications to your application ensures optimal product performance and cost efficiency.

Footwear Uppers (Flyknit, Woven, Warp-Knitted)

• Recommended Grade: TPU Monofilament (0.10 – 0.30mm)

• Common Sizes: 0.1mm, 0.2mm, 0.3mm

• Primary Benefit: High transparency and rubber-like elasticity create breathable, form-fitting uppers.

Bags, Ribbons, and Woven Labels

• Recommended Grade: TPU Covered High Strength Monofilament (300D – 2500D)

• Common Sizes: 600D, 900D, 1200D

• Primary Benefit: High tensile strength paired with soft hand-feel and thermal edge-sealing capabilities.

Outdoor Gear and Medical Products

• Recommended Grade: TPU Covered High Strength or Pure TPU Monofilament

• Melting Options: 160°C / 250°C high-temperature variants

• Primary Benefit: Super wear resistance under harsh weather and skin-safe comfort for medical wear.

💡 Frequently Asked Questions

Q: Can TPU covered yarn replace solvent adhesives in bag and webbing manufacturing?

A: Yes. The outer TPU layer melts at controlled processing temperatures (160°C to 250°C), allowing it to bond securely to surrounding fibers. This eliminates liquid glues, speeds up production cycles, and complies with eco-friendly manufacturing standards.

Why Choose Sinrylion: A Professional Monofilament Yarn Manufacturer

Partnering with an experienced yarn factory guarantees steady raw material quality, competitive manufacturer pricing, and reliable delivery schedules.

Over 40 Years of Industrial Leadership

Founded in March 1983, Sinrylion is a trusted synthetic yarn manufacturer. Over 40 years of continuous growth have enabled us to refine polymer extrusion, color masterbatch blending, and quality control systems.

Our supply network spans key textile hubs across Fujian, Guangdong, Zhejiang, Hong Kong, Europe, and Southeast Asia.

High Daily Output and Machinery Assets

• 400+ Advanced Machinery Sets: Equipped with modern POY spinning lines, drawing frames, warping units, and approximately 200 specialized twisting machines.

• 20 Tons Daily Capacity: Ensures large-scale orders are produced and shipped on schedule.

• Annual Production Volume: Delivers over 2,000 tons of high-grade technical yarn and 8,000 tons of standard spun yarns yearly.

Quality Assurance & Environmental Certifications

Sinrylion operates an in-house testing laboratory to inspect every lot before shipment:

• ISO9001 Quality Management System: Standardizes operational procedures from raw resin feeding to final spool winding.

• OEKO-TEX Standard 100 Certification: Ensures our TPU monofilament products are free from harmful substances and safe for direct skin contact.

• Global Recycled Standard (GRS): Supports eco-friendly sourcing for sustainable product lines.

💡 Frequently Asked Questions

Q: How does Sinrylion ensure lot-to-lot consistency for bulk TPU yarn orders?

A: As an established monofilament yarn manufacturer operating since 1983, Sinrylion employs ISO9001 quality management systems and an in-house testing center. Producing 20 tons daily across 400+ advanced machines, every lot undergoes strict tensile strength, denier accuracy, and melting threshold verification.

Integrating TPU covered high strength monofilament and TPU monofilament into your products enhances wear resistance, structural stability, and eco-friendly thermal bonding. Partnering with a proven factory ensures material consistency, factory-direct pricing, and dependable lead times.

Sinrylion combines 40+ years of manufacturing experience, daily outputs of 20 tons, and international ISO9001 and OEKO-TEX certifications to support your supply chain.

Ready to upgrade your textile performance?

• 📩 Contact our technical team today for a custom quote or technical datasheet (TDS).

• 🧵 Request FREE samples to test on your production lines.

• 🏭 Schedule a virtual or on-site tour of our manufacturing facility!
