As footwear products continue to move towards "functionality", "personalization" and "environmental protection", material innovation has become a key force in promoting industrial upgrading. TPEE (thermoplastic polyester elastomer) monofilament, as a new material that has emerged in the textile and industrial fields in recent years, has shown increasingly prominent value in footwear applications due to its unique "soft with hardness" and "elastic but not collapsed" performance.
Compared with traditional materials, TPEE monofilament has stronger wear resistance, elasticity and processing flexibility, making it widely used in upper support yarns, shoelaces, decorative webbing, shoe mouth hemming and other parts in sports shoes, outdoor shoes, children's shoes and other fields. It can not only improve the structural performance and wearing experience of shoes, but also provide designers with more diverse creative space.
This article will conduct an in-depth analysis of the four major sections of TPEE monofilament performance characteristics, typical applications, processing suggestions and industry trends, aiming to help footwear practitioners, R&D engineers and brand designers better understand and use this new material with development potential.
The core performance advantages of TPEE monofilament
TPEE monofilament is a single strand of high-strength fiber extruded from TPEE material, combining the strength of polyester with the flexibility of elastomer. The following aspects are the reasons why it is popular in shoe materials:
1. Excellent elastic recovery ability
TPEE has the characteristics of high resilience, and can quickly return to its original shape even after repeated stretching or bending. This performance is particularly suitable for parts that require frequent deformation, such as the middle of the upper, the shoe mouth, and the shoelaces, which helps to improve the fit and comfort of the shoes.
2. Good wear resistance
During daily wear, the upper and shoelaces often rub against the feet and the external environment. TPEE monofilament has a smooth surface and strong toughness. It is not easy to fluff or break even after long-term use, which significantly extends the service life of the shoes.
3. Stable high and low temperature resistance
TPEE monofilament can maintain stable performance in a wide temperature range, and will not become brittle due to cold, nor soften due to high temperature. Whether it is hot summer or cold winter, it can be used for footwear products in various climatic conditions.
4. Easy to process and highly adaptable
TPEE monofilament can be used for conventional processing operations such as hot cutting, stitching, laser engraving, etc., and can be adapted to a variety of textile equipment (such as warp knitting machines, weft knitting machines, jacquard machines, etc.) to meet the needs of different shoe material structures.

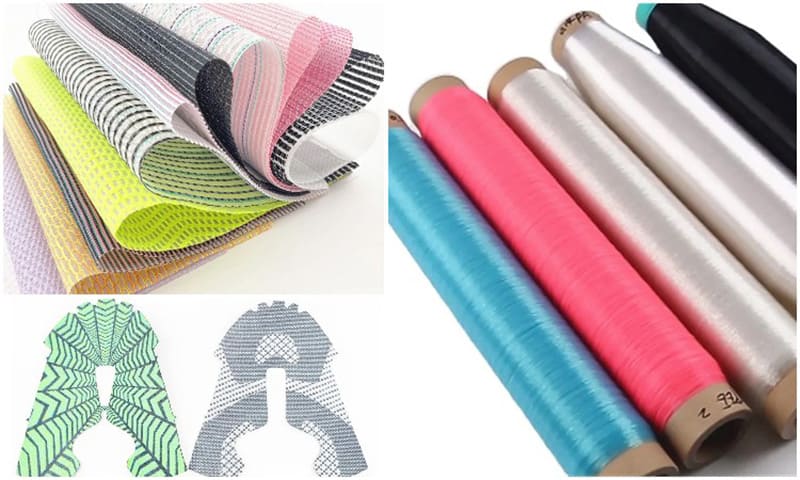

Upper support structure: the first main battlefield of TPEE monofilament
1. Skeleton structure yarn for knitted uppers
The popular "flying knit uppers" in recent years widely use knitting technology to create seamless one-piece uppers. TPEE monofilament can be blended with conventional fibers such as nylon and polyester to enhance the support of the upper structure. Adding TPEE support yarn to the midfoot or arch area helps prevent the upper from deforming due to use and improves stability.
2. Multifunctional upper mesh
The mesh made of TPEE monofilament is not only compact and breathable, but also has good ductility and tear resistance. It is suitable for sports shoes, jogging shoes, work shoes and other occasions that require both comfort and durability.
3. Achieve a double breakthrough in vision and function
Thanks to TPEE's good dyeability, designers can use it in the weaving of shoe upper patterns to achieve the fusion of structure and pattern. The color stability and anti-fading characteristics also make it suitable for creating brand styles with high visual recognition.
The various uses of TPEE monofilament in shoelaces and structural details
1. Elastic shoelace materials
Traditional shoelaces are often made of cotton, polyester or nylon, which are strong but lack resilience. TPEE monofilament has natural elasticity. After being made into elastic shoelaces, it can achieve the effect of "no lacing, automatic fit", which is especially suitable for children's shoes, walking shoes, and easy-to-put-on and -off shoes.
2. Eyelet reinforcement and edging strips
The eyelet area is often a vulnerable point of the shoe due to pulling. Weaving TPEE monofilament into the reinforcing webbing around the eyelet can effectively enhance the tear resistance of this area while maintaining beauty and flexibility.
3. Shoe opening edging and lining webbing
The shoe opening often rubs against the ankle, which is a key area that affects the wearing experience. TPEE monofilament is soft and moderately elastic. It can be used for hemming materials or lining webbing to improve fit and reduce friction, making the overall wear more comfortable.
How to choose the appropriate TPEE monofilament specifications and application suggestions
The application effect of TPEE monofilament is closely related to its specification parameters and process control. In the design and production of shoe materials, the following points should be paid attention to:
1. Monofilament diameter selection
Upper structure: The recommended diameter is between 0.18~0.22mm, which is convenient for blending and integration;
Shoelace use: The diameter is suitable for 0.25~0.30mm, with sufficient elasticity and stretch resistance;
Shoe mouth hemming: Use finer specifications (such as about 0.15mm) to reduce the sense of pressure.
2. Yarn hardness and color control
TPEE monofilament can be adjusted with different polyester soft and hard segment ratios to adjust its overall flexibility;
During the processing, attention should be paid to the matching of color matching process. It is recommended to use the original liquid coloring process to improve color fastness and avoid fading problems.
3. Weaving process suggestions
TPEE monofilament is suitable for a variety of weaving methods, and single-sided warp knitting, double-layer weft knitting and other methods can be used to complete the yarn arrangement of different functional areas. Tension control and heat treatment should be coordinated to ensure the stability of the finished product structure.
Market trends and future development: Sustainable path of TPEE monofilament shoe material
1. Demand for environmentally friendly materials drives the development of TPEE
In the context of carbon neutrality, traditional petrochemical plastics are facing replacement pressure. TPEE has certain recyclability and can be reheated and recycled after the end of its service life, responding to the global demand for environmentally friendly production.
2. Multifunctional integration becomes mainstream
Modern consumers pursue lightweight, high-performance and durable footwear. The "one-line multi-effect" characteristics of TPEE monofilament enable it to simultaneously assume multiple functions of structural support, elastic feedback and aesthetic expression, and is an ideal material to meet this trend.
3. China's footwear industry accelerates material upgrades
China's footwear industry is leaping from low-value-added manufacturing to mid-to-high-end manufacturing, and material upgrades are one of the core links. Taking Jinjiang City as an example, many shoe material companies have cooperated with TPEE material manufacturers such as Sinrylion to explore the application path of TPEE monofilament in domestic high-performance shoes.
Conclusion: TPEE monofilament makes shoes more durable, more comfortable and more personalized
TPEE monofilament is quietly changing the structure and experience of footwear products with its excellent elasticity, wear resistance, temperature adaptability and design compatibility. From "structural skeleton" to "appearance vision", from "comfortable lining" to "environmental protection concept", it is undoubtedly one of the key engines to promote shoe material innovation.
For shoe designers and manufacturers, mastering the performance and application skills of TPEE monofilament is not only the optimization of material selection, but also the grasp of future shoemaking trends. In the footwear market that is constantly pursuing high performance, personalization and sustainability, TPEE monofilament undoubtedly has broad growth space and unlimited possibilities.
